Raftec Motors Tractor Range

Explore our powerful, fuel‑efficient tractors designed for farming and commercial applications in the Middle East and beyond.

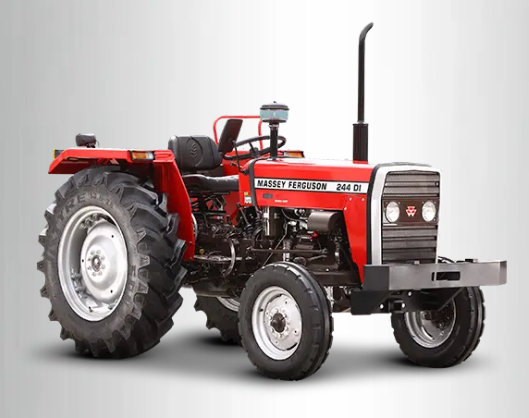

MF 244 DI

MF 244 DI

44 HP, 2WD multi‑purpose tractor ideal for tillage, haulage and PTO‑driven implements.

• 44 hp (32.35 kW) 3‑cylinder diesel engine with wet 3‑stage air cleaner.
• 8 forward + 2 reverse PCM centre‑shift gearbox for smooth operation.
• Oil‑immersed brakes with 1700 kgf hydraulic lifting capacity for heavy implements.
• Comfort features like push‑type pedals, adjustable seat, mobile charger and front bumper.

Engine & Performance

• HP range: 44 hp (32.35 kW)
• Engine: TIII A S325.1‑F2.6, 3 cylinders
• Cooling: Liquid cooled
• Air cleaner: Wet, 3‑stage
• PTO power: Approx. 37.8 hp
• Fuel type: Diesel

Transmission & Drive

• Transmission: 8F + 2R PCM centre shift
• Clutch: Dual clutch
• Drive: 2WD, swept fixed front axle
• PTO: LPTO (live PTO)
• Rear drive: MF 244 DI PD – Ultra HD PD / MF 244 DI PM – Direct drive

Hydraulics & Brakes

• Hydraulics: Oil‑immersed Ferguson hydraulics system
• Lifting capacity: 1700 kgf
• Brakes: Multi‑disc oil‑immersed brakes (OIB)
• Linkage: Suitable for rotavator, cultivator, plough, trailer, sprayer and more

Dimensions & Tyres

• Wheel base: 1785 mm
• Minimum ground clearance: 345 mm
• Front tyres: 6.00 x 16
• Rear tyres: 13.6 x 28
• Approx. tractor weight: 1900–1950 kg (variant‑dependent)

Comfort & Convenience

• Steering: Manual steering (power steering optional on some variants)
• Pedals: Push‑type pedals
• Seat: Adjustable driver seat
• Electricals: 7‑pin trailer socket, mobile charger

Standard Accessories

• Front bumper and chain stabiliser
• Oil pipe kit and transport lock valve (TLV)
• Check chain and tool box
• 7‑pin trailer socket
• Rear weights: 25–35 kg (variant‑dependent)

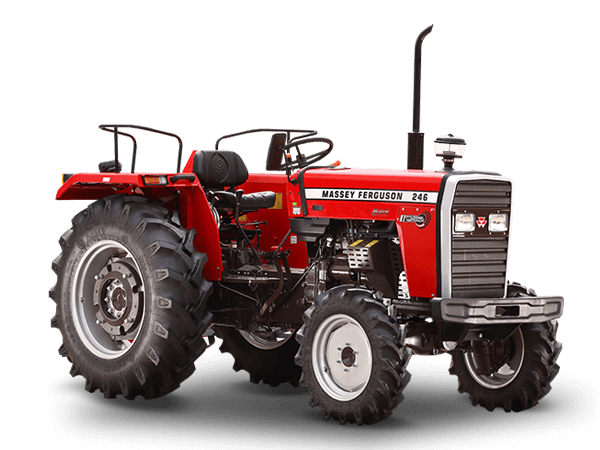

MF 246 DYNATRACK 4WD

MF 246 DYNATRACK 4WD

46 HP, 4WD tractor with advanced Dynatrack design for superior traction, haulage and heavy‑duty field operations.

• 46 hp (33.82 kW) SIMPSONS S325.5 TIII A engine with 2700 cc cubic capacity.
• 12 forward + 12 reverse fully constant mesh transmission for precise speed control.
• Quadra PTO with six‑splined shaft and 540 RPM @ 1789 ERPM.
• High 2050 kgf hydraulics lifting capacity with draft, position and response control.

Engine & Performance

• Power range: 46 hp (33.82 kW)
• Engine: SIMPSONS S325.5 TIII A
• Cylinders: 3
• Cubic capacity: 2700 cc (2.70 L)
• Fuel injection pump: Inline
• Fuel tank capacity: 55 L

Transmission & PTO

• Transmission type: Fully constant mesh
• Number of speeds: 12 forward + 12 reverse
• Clutch type: Dual diaphragm
• PTO type: Quadra PTO, six‑splined shaft
• PTO speed: 540 RPM @ 1789 ERPM

Hydraulics & Linkage

• Lifting capacity (lower links at horizontal): 2050 kgf
• Three‑point linkage and controls: Draft, position and response control
• Links fitted with CAT‑1 (Combi Ball)

Tyres & Brakes

• Tyre dimensions (front): 8.00 x 18 (20.32 cm x 45.72 cm)
• Tyre dimensions (rear): 14.9 x 28 (37.85 cm x 71.12 cm)
• Brake type: Multi‑disc oil‑immersed brakes

Dimensions & Weight

• Overall length: 3642 mm
• Overall width: 1784 mm
• Overall height: 2423 mm
• Wheelbase: 2040 mm
• Total weight: 2140 kg
• Forward speed @ rated RPM: 34.5 kmph

Steering & Electricals

• Steering type: Power steering
• Electricals: 12 V 80 Ah battery, 12 V 36 A alternator

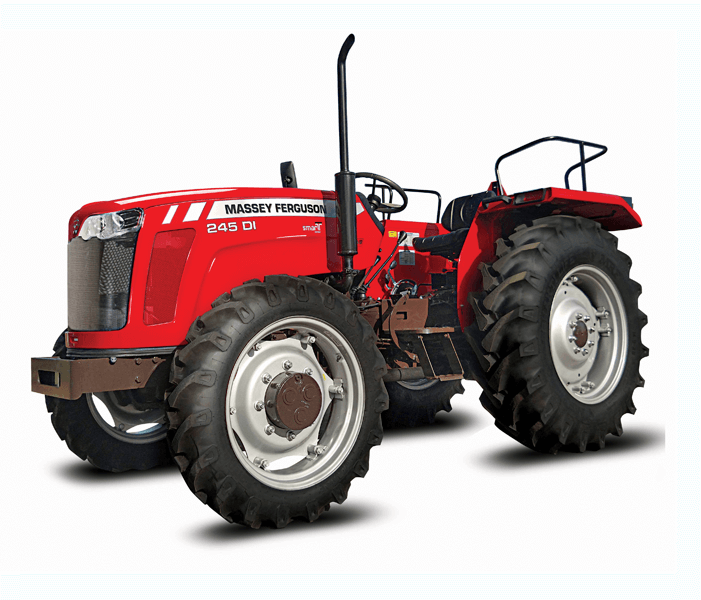

MF 245 SMART 4WD

MF 245 SMART 4WD

46 HP, 4WD SMART series tractor with advanced comfort features and strong performance for multi‑application use.

• 46 hp (33.82 kW) SIMPSONS S325.5 TIII A engine with 2700 cc cubic capacity.
• 10 forward + 2 reverse partial constant mesh gearbox for versatile speed selection.
• Live PTO with six‑splined shaft and 540 RPM @ 1906 ERPM.
• 1700 kgf lifting capacity with CAT‑2 linkage and SMART comfort features.

Engine & Performance

• Power range: 46 hp (33.82 kW)
• Engine: SIMPSONS S325.5 TIII A
• Cylinders: 3
• Cubic capacity: 2700 cc (2.7 L)
• Fuel injection pump: Inline
• Fuel tank capacity: 47 L

Transmission & PTO

• Transmission type: Partial constant mesh
• Number of speeds: 10 forward + 2 reverse
• Clutch type: Dual
• PTO type: Live, six‑splined shaft
• PTO speed: 540 RPM @ 1906 ERPM

Hydraulics & Linkage

• Lifting capacity (lower links at horizontal): 1700 kgf
• Three‑point linkage and controls: Draft, position and response control
• Links fitted with CAT‑2 (Combi Ball)

Tyres & Brakes

• Tyre dimensions (front): 8.30 x 24 (21.08 cm x 60.96 cm)
• Tyre dimensions (rear): 14.9 x 28 (37.85 cm x 71.12 cm)
• Brake type: Multi‑disc oil‑immersed brakes

Dimensions & Weight

• Overall length: 3580 mm
• Overall width: 1700 mm
• Overall height: 2200 mm
• Wheelbase: 1970 mm
• Total weight: 2375 kg
• Forward speed @ rated RPM: 34.05 kmph

Steering & Features

• Steering type: Power steering
• Electricals: 12 V 80 Ah battery, 12 V 36 A alternator
• Features: SMART key, adjustable hitch, front opening bonnet, push‑type pedals, adjustable seat

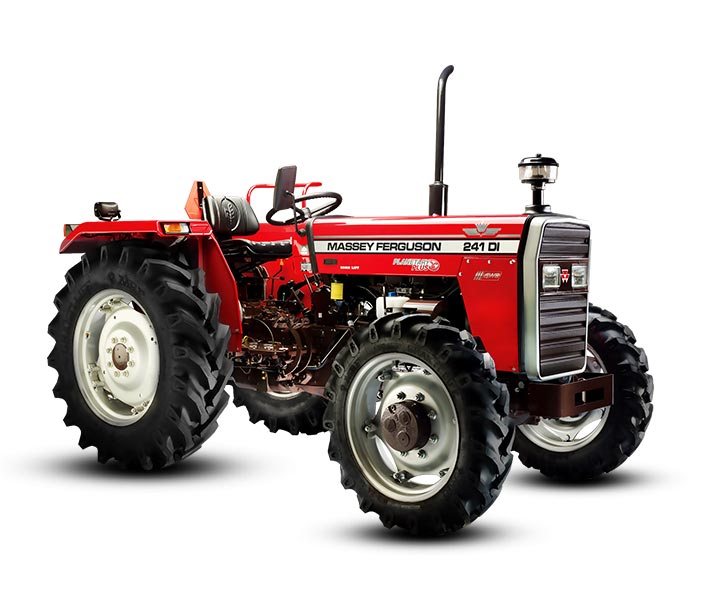

MF 241 DI 4WD

MF 241 DI 4WD

42 HP, 4WD tractor with balanced power, fuel efficiency and strong lift capacity for versatile farm operations.

• 42 hp (30.88 kW) SIMPSONS S325.1‑F2 TIII A engine with 2500 cc capacity.
• 8F + 2R partial constant mesh gearbox with optional 10F + 2R.
• Live PTO, six‑splined shaft with dual PTO speed options.
• 1700 kgf lifting capacity with CAT‑2 linkage and 4WD axle for better traction.

Engine & Performance

• Power range: 42 hp (30.88 kW)
• Engine: SIMPSONS S325.1‑F2 TIII A
• Cylinders: 3
• Cubic capacity: 2500 cc (2.50 L)
• Fuel injection pump: Inline
• Fuel tank capacity: 47 L

Transmission & PTO

• Transmission type: Partial constant mesh
• Number of speeds: 8 forward + 2 reverse
• Option: 10 forward + 2 reverse
• Clutch type: Dual
• PTO type: Live, six‑splined shaft
• PTO speed: 540 RPM @ 1500 ERPM (option: 540 RPM @ 1906 ERPM)

Hydraulics & Linkage

• Lifting capacity (lower links at horizontal): 1700 kgf
• Three‑point linkage and controls: Draft, position and response control
• Links fitted with CAT‑2 (Combi Ball)

Tyres & Brakes

• Tyre dimensions (front): 8.30 x 24 (21.08 cm x 60.96 cm)
• Tyre dimensions (rear): 13.6 x 28 (35.54 cm x 71.12 cm)
• Brake type: Multi‑disc oil‑immersed brakes

Dimensions & Weight

• Overall length: 3369 mm
• Overall width: 1698 mm
• Overall height: 2244 mm
• Wheelbase: 1970 mm
• Total weight: 2260 kg
• Forward speed @ rated RPM: 29.5 kmph

Steering & Features

• Steering type: Power steering
• Electricals: 12 V 80 Ah battery, 12 V 36 A alternator
• Features: G4.1 4WD axle, front weight platform, adjustable seat, push‑type pedals, optional Hilug tyres
